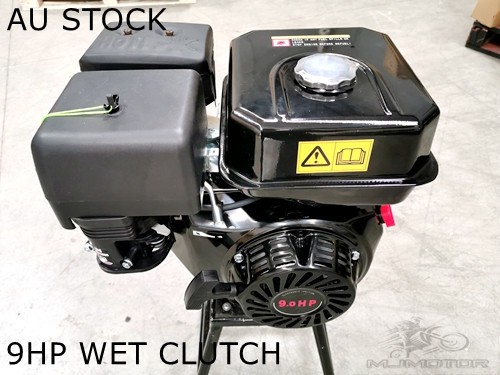

9HP 2:1 Reduction Gear Box Stationary Motor Engine Wet Clutch 4 Go Kart Trike LIFAN

NOTES:  All 4-stroke engines do not come with engine oil. The reason is that shipping companies do not allow oil inside. Before starting the engine, please ensure sufficient engine oil has been added. You can use motorbike oil SAE 10W-30,10W-40, 15W-30, 15W-40.Please check the oil level in the reduction gearbox.

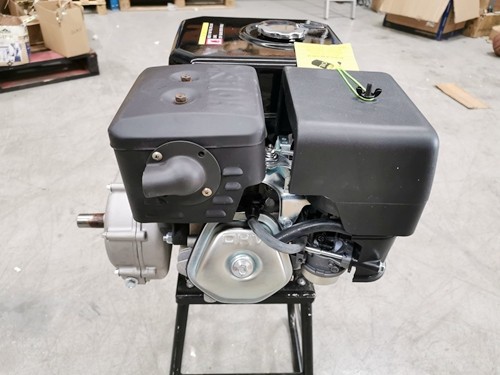

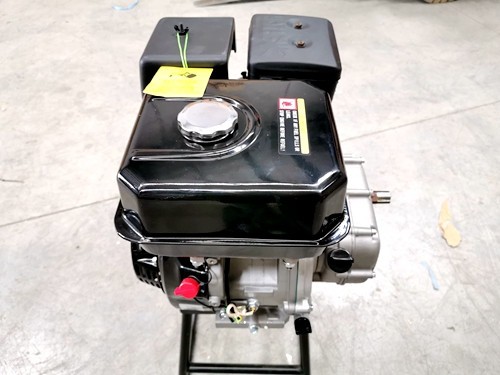

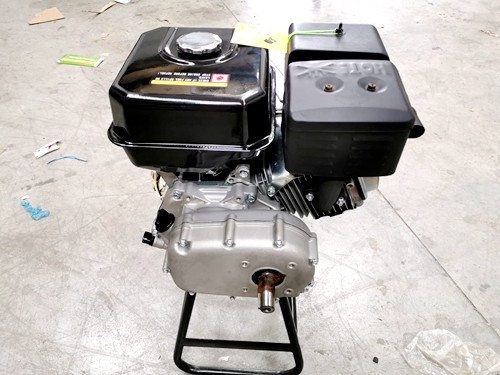

This is a brand new complete 270cc, 4 stroke, restrictable, automatic, air cooled, pull start engine with a wet clutch. LIFAN BRAND.

Standard equipment on 270cc 9hp Drift trike/Go kart.

These engines are ultra reliable and can be used on power washers, gokarts, log splitters, chipper, spreaders, mowers and a whole range of projects and bespoke fitment.

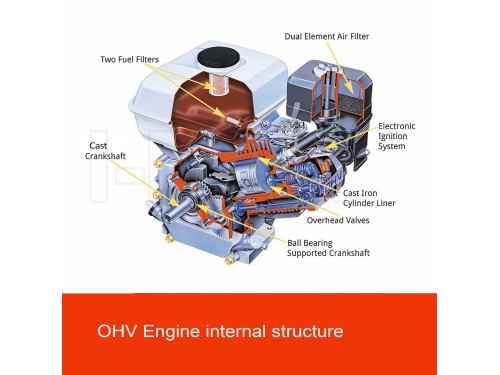

ENGINE TYPE - Single cylinder 4 Stroke Unleaded Air Cooled Engine

ENGINE DISPLACEMENT - 270ml

MAXIMUM POWER OUTPUT - 9hp @ 3600rpm

MAXIMUM TORQUE OUTPUT - 19.0 N.m @ 2500rpm

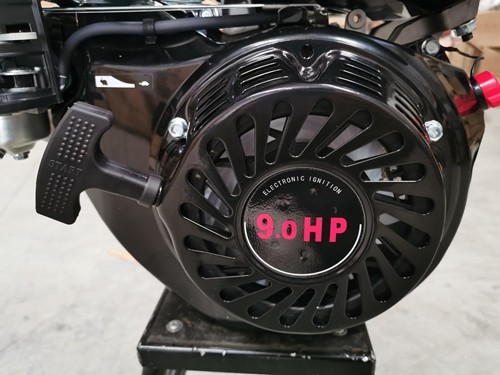

STARTING SYSTEM - PULL RECOIL START - Easy Start model

BORE x STROKE SIZE - 77mm x 58mm

FUEL TANK CAPACITY - 6 litres

FUEL CONSUMPTION - 290g / HP - hour

ENGINE OIL CAPACITY - 1.1 Litres

ENGINE OIL GRADE - SAE-30 Grade

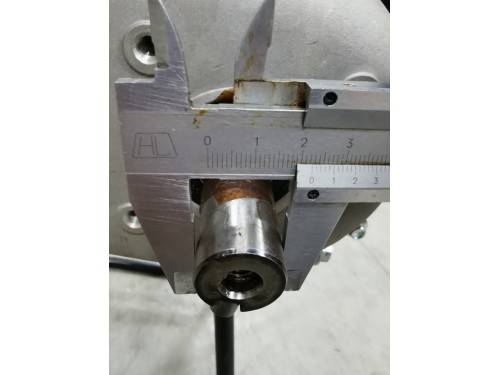

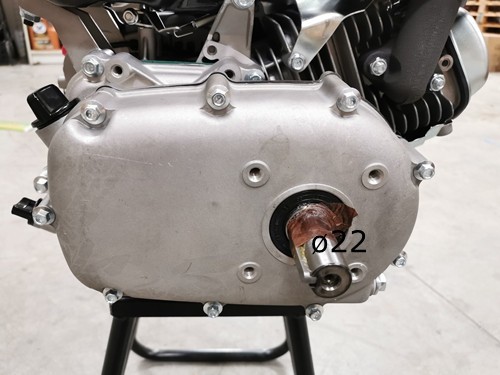

OUTPUT SHAFT OUTSIDE DIAMETER - 7/8" 22.2mm

SHAFT ROTATION: ANTI-CLOCKWISE (VIEW FROM SHAFT SIDE)

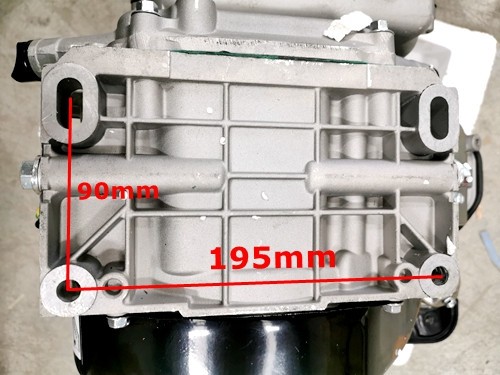

DIMENSION (LxWxH) 380x420X410mm
