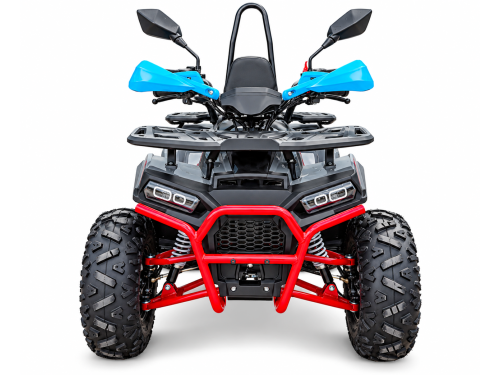

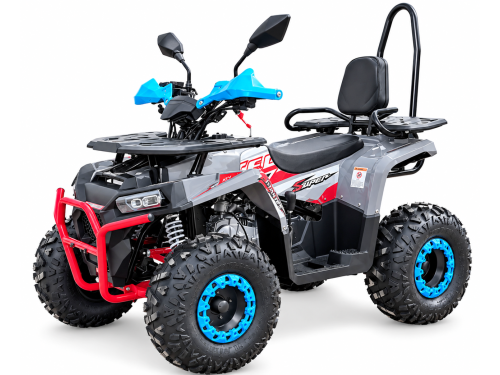

TITAN 125cc ATV Quad Bike – 1+1 Model

TITAN 125 – Built for Off-Road Fun

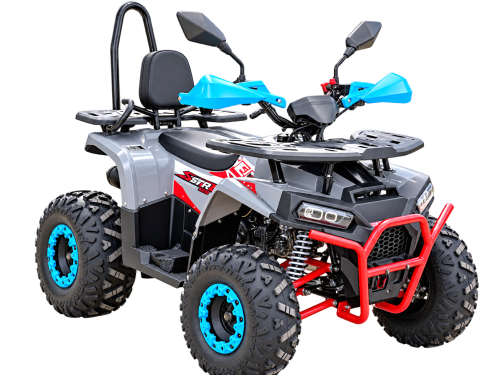

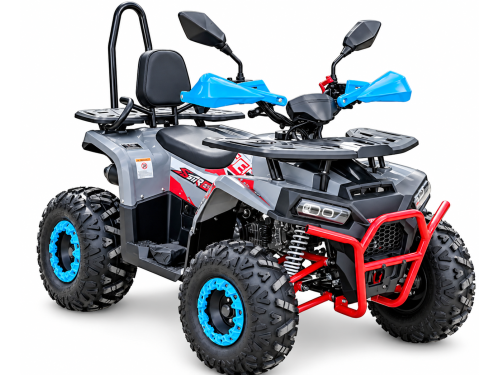

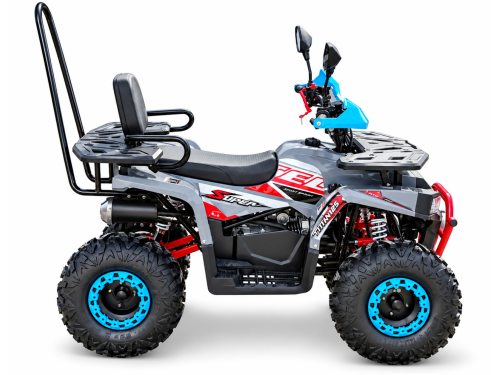

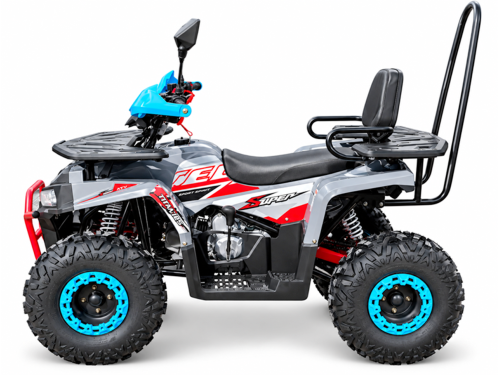

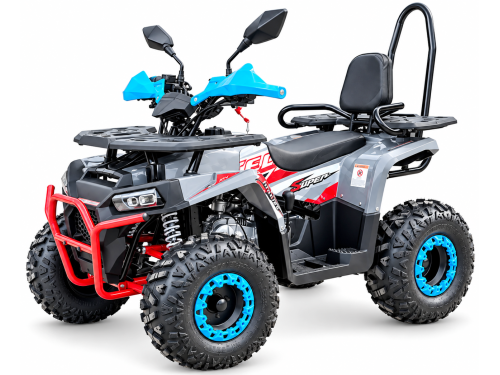

Meet the TITAN 125cc 1+1 ATV Quad Bike, featuring a strong frame, a YX125cc engine and seating for one, with a rear backrest for passenger support.

The quad comes equipped with front and rear LED lights, a factory-fitted OPD (Operator Protection Device), handlebar protective covers and a front bull bar. Its semi-automatic transmission and electric start make operation straightforward, while the handlebar-mounted throttle governor allows the speed to be limited.

Designed for recreational off-road riding by suitable teenage and adult riders.

Off-road use only. Always wear suitable protective gear, follow the owner’s manual and check local requirements before riding.

Features

• YX125cc 4-stroke engine
• Semi-automatic transmission: 1 forward gear, Neutral and Reverse
• Electric start
• No clutch lever required
• 1+1 seating with rear backrest support
• Factory-fitted OPD (Operator Protection Device)
• Front and rear LED lights
• Handlebar protective covers
• Front bull bar
• Handlebar-mounted throttle governor to help limit speed
• Front and rear hydraulic brakes
• Double A-arm front suspension
• Rear mono-shock suspension
• Strong frame
• 8-inch knobby off-road tyres

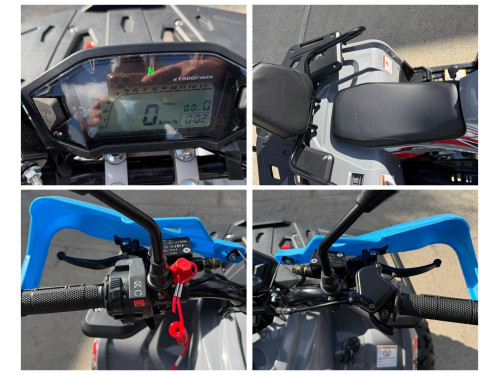

• Large display screen
• Front and rear cargo racks

Engine & Transmission Specifications

• Engine: 124cc, 4-stroke, single-cylinder, air-cooled, horizontal
• Bore × stroke: 52.4 × 57mm
• Maximum power: Approx. 5.6–6.8kW @ 7,500–8,000rpm
• Maximum torque: Approx. 8.5–9.7Nm @ 5,000–5,500rpm
• Transmission: Semi-automatic, 1-N-R
• Clutch: Centrifugal semi-automatic; no clutch lever required
• Starting system: Electric start
• Ignition: CDI
• Drive: Chain drive, #428H chain
• Battery: 12V, 5Ah
• Fuel tank: 2.5L metal tank
• Recommended engine oil: SAE 15W-40
• Valve clearance: 0.03–0.05mm
• Spark plug: NST/A7RTC or NGK CR6HSA
• Spark plug gap: 0.06–0.085mm

Chassis, Suspension & Tyres

• Front suspension: Double A-arm swing arm
• Rear suspension: Mono-shock swing arm
• Front and rear brakes: Hydraulic

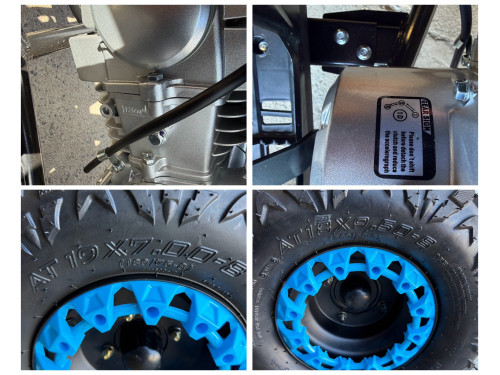

• Front tyres: 19 × 7-8
• Rear tyres: 18 × 9.5-8 (4-stud)
• Recommended tyre pressure: 5 PSI

Dimensions & Weight

• Vehicle dimensions (L × W × H): 150 × 95 × 95cm
• Wheelbase: 950mm
• Seat height: 70cm
• Ground clearance: 100mm
• Load capacity: 120kg
• Net weight: 120kg
• Gross weight (in carton): 143kg
• Carton dimensions (L × W × H): 140 × 91 × 60cm

Shipping & Assembly

• The quad is supplied in a carton and requires assembly.
• Please provide your postcode and suburb for a shipping quote.
• Our website is set up for home delivery only. If you require delivery to a business address or a local freight depot, please contact us. We’ll email you an invoice with the applicable delivery cost.
