🔥 KEY FEATURES
- 270cc 9HP 4-Stroke Petrol Engine
- Recoil Pull Start
- Heavy-Duty Reduction Gearbox
- Wet Clutch
- Upgraded 40mm Rear Axle
- 26" × 4" Front Wheel
- 11 × 7.10-5 Rear Wheels
- Heavy-Duty PE Drift Sleeves
- Hydraulic Rear Disc Brake
- Front Hydraulic ventilated disc brake
- Heavy-Duty Steel Frame
- Extended Wheelbase

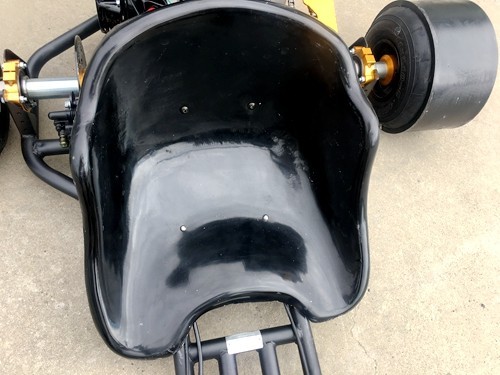

- Go-Kart Style Racing Bucket Seat
- Twist-Grip Throttle
- CNC-Machined Upgraded Components
- Gold-anodised finish on selected components
- Maximum Rider Weight: 120kg
- Suitable for experienced teenagers and adults

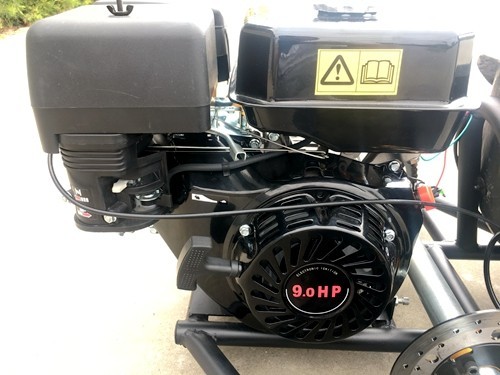

💪 270CC 9HP POWER
The drift trike is powered by a 270cc 4-stroke air-cooled engine producing up to 9HP.
The combination of the powerful engine, wet clutch and reduction gearbox provides strong torque and smooth power delivery.
Engine Specifications
| Specification |
Details |
| Engine |
270cc 4-Stroke Air-Cooled |
| Maximum Power |
9HP |
| Compression Ratio |
9.5:1 |
| Starting System |
Pull Start |
| Fuel |
Unleaded Petrol |
| Fuel Tank |
3.6L |
| Engine Oil Capacity |
0.9L |
| Gearbox Oil Capacity |
0.3L |
| Transmission |
Automatic |
| Drive |
#428 Chain Drive |
No fuel/oil mixing is required.

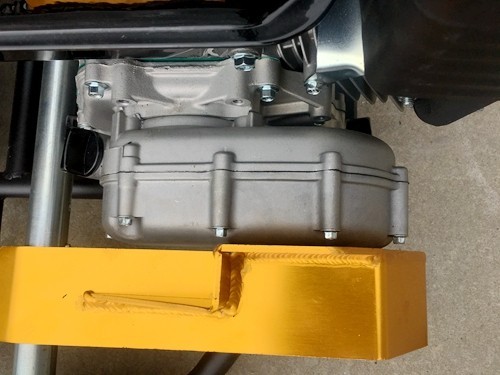

⚙️ REDUCTION GEARBOX + WET CLUTCH
The drift trike is equipped with a heavy-duty reduction gearbox and wet clutch system.
This setup is designed to provide:
- Strong low-speed torque
- Smooth power delivery
- Better acceleration control
- Improved clutch durability
- More controlled drifting
- Reduced stress on the drive system
The reduction gearbox also helps transfer the 9HP engine power efficiently to the rear axle.

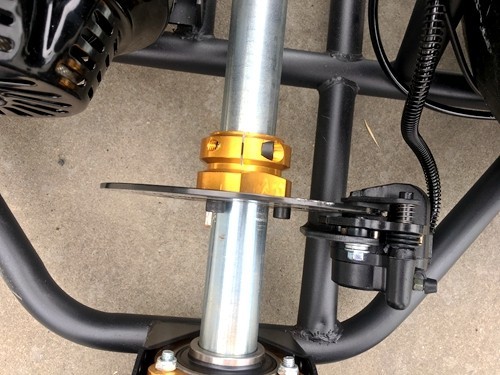

🏁 HEAVY-DUTY 40MM REAR AXLE
The drift trike has been upgraded with a 40mm rear axle, significantly larger and stronger than the standard 25mm axle found on many smaller drift trikes.
This heavy-duty rear axle is designed to better handle the power and loads generated during recreational drifting.
🛞 LARGE FAT TYRES & DRIFT SLEEVES
Front Wheel
26" × 4" Fat Tyre
The oversized front wheel gives the DT4 its distinctive aggressive appearance and helps provide stability.

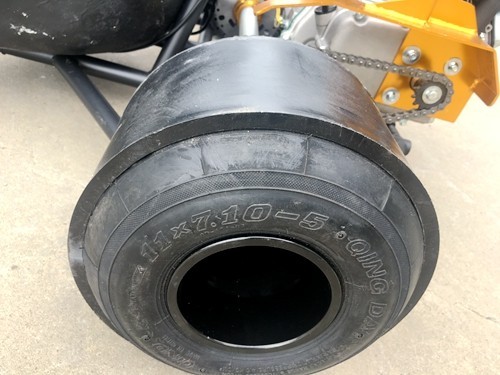

Rear Wheels
11 × 7.10-5
The wide rear wheels are fitted with a pair of 12mm-thick PE drift sleeves, allowing the rear end to slide during controlled drifting.
🛑 UPGRADED BRAKING SYSTEM
Front Brake
Hydraulic ventilated disc brake
Rear Brake
Hydraulic ventilated disc brake
The hydraulic rear brake is operated by a foot pedal and provides strong braking performance and better control.

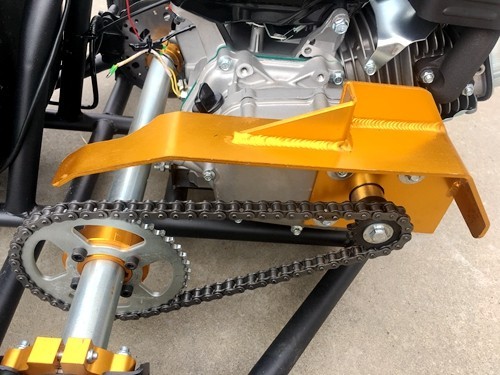

🔧 CNC-MACHINED COMPONENTS
The drift trike features several upgraded CNC-machined components, including:
- Wheel hubs
- Axle collars
- Chain guard
- Foot pegs
Selected components feature a gold-anodised finish, giving the DT4 a premium and aggressive appearance.
🏎️ FULL-SIZE DRIFT TRIKE
The drift trike features an extended heavy-duty steel frame and extended wheelbase for improved stability.
Seat to Foot Peg Distance
Approximately 95cm
Rider Capacity
1 person
Maximum Rider Weight
120kg
The full-size design makes the drift trike suitable for experienced teenagers and adult riders, depending on rider height, weight and riding ability.
📏 DIMENSIONS & WEIGHT
| Specification |
Details |
| Overall Size |
2100 × 1200 × 900mm |
| Carton Size |
1160 × 900 × 600mm |
| Net Weight |
80kg |
| Gross Weight |
85kg |
| Ground Clearance |
Approx. 125mm |
| Maximum Load |
120kg |
Performance
Top Speed: Over 60km/h
Actual speed will vary depending on rider weight, terrain, surface conditions and riding environment.
🔧 ASSEMBLY
The drift trike is supplied approximately 90% pre-assembled.
Some assembly is required, including:
- Front frame
- Handlebars
- Steering joints
- Front wheel
- Rear axle and wheels
- Seat
Estimated assembly time: 30–60 minutes
⚠️ IMPORTANT – OIL MUST BE ADDED BEFORE STARTING
The engine and reduction gearbox are supplied without operating oil.
Engine oil and gearbox oil must be added before starting the engine.
⚠️ DO NOT START THE ENGINE WITHOUT OIL.
Running the engine without sufficient oil can cause serious engine or gearbox damage and may void the warranty.
📦 WHAT'S INCLUDED
- 1 × DRIFT-X 9HP FAT BOY Drift Trike
- 270cc 9HP Engine
- Reduction Gearbox
- PE Rear Drift Sleeves
- Basic assembly components
⚠️ SAFETY INFORMATION
This is a high-powered motorised recreational vehicle.
- Always wear a properly fitted helmet.
- Protective riding equipment is strongly recommended.
- Ride only in a suitable private/off-road area.
- Never ride on public roads.
- Never carry a passenger.
- Do not exceed the 120kg maximum load.
- Younger riders must be appropriately supervised.
- Always check the brakes, tyres, chain, steering and controls before riding.
- Only experienced riders should operate the vehicle at higher speeds.
🔥 DRIFT-X 9
270CC • 9HP • WET CLUTCH • REDUCTION GEARBOX • 40MM REAR AXLE • FULL-SIZE DRIFTING
Built for serious fun. Built to DRIFT.
