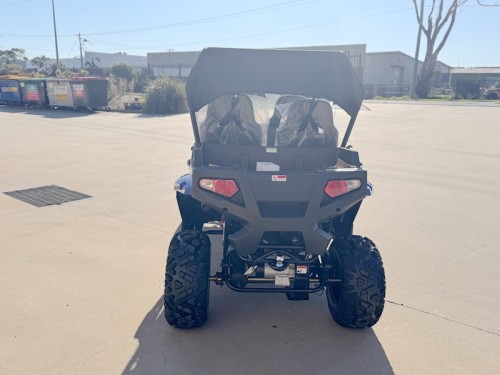

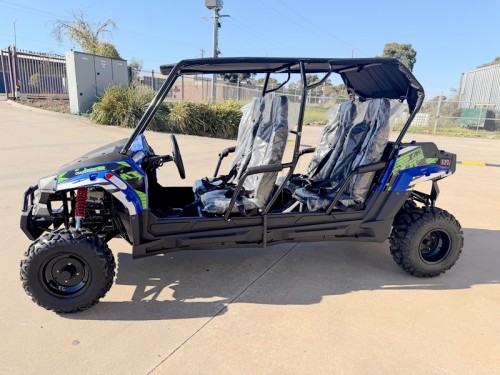

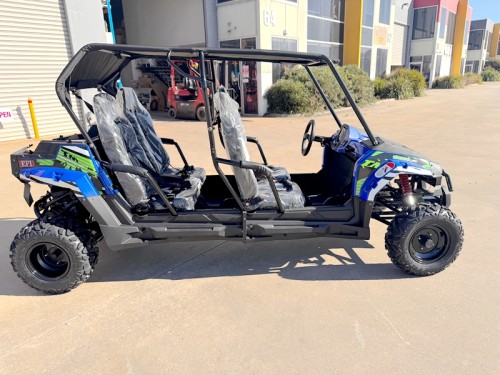

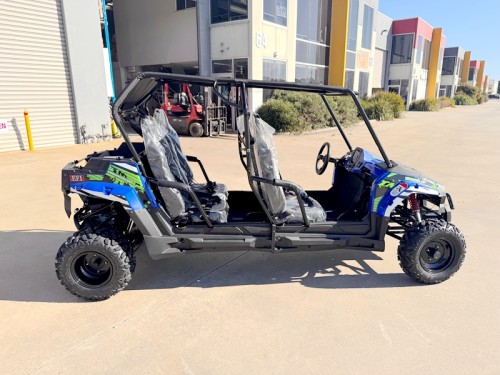

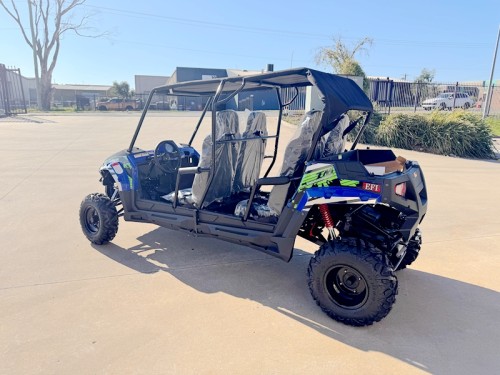

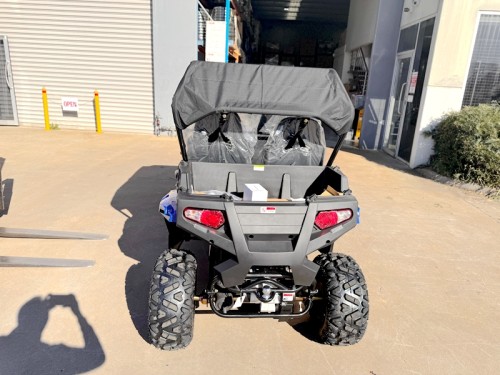

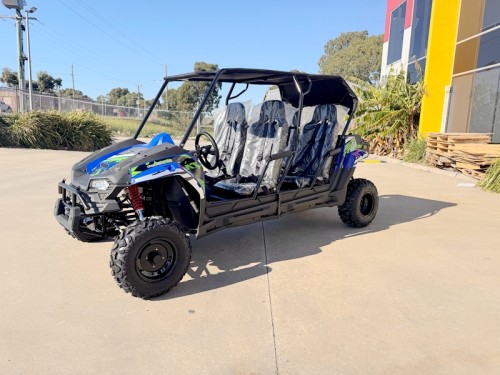

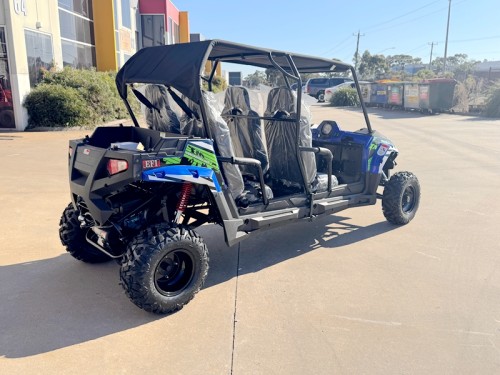

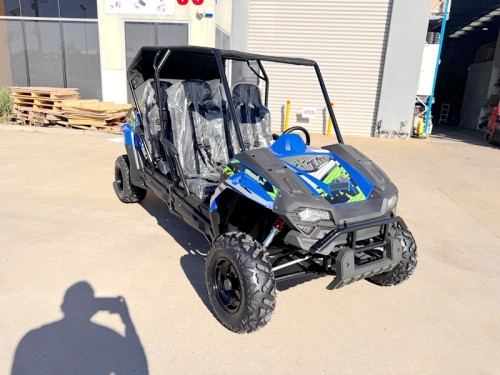

200CC UTV Challenger 200FX Dune Buggy Go kart Off Road 4 Seater Auto CVT EFI

• 200cc air-cooled engine EPA
• Electronic Fuel Injection(EFI, not a carby system)

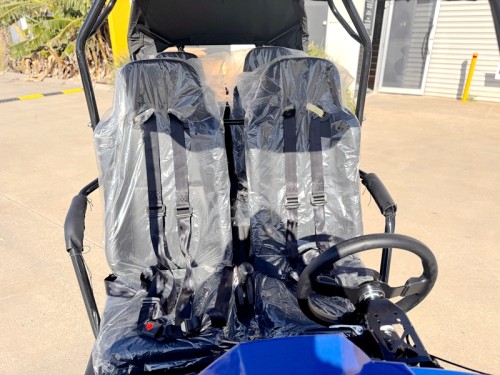

• Adjustable Driver Padded seat with 4-point safety harness
• Adjustable steering wheel(low-high)-Adjustable pinion rack Controls
• Hydraulic front and rear disc brakes
• Electric key start with kill switch
• Auto with the reverse gear

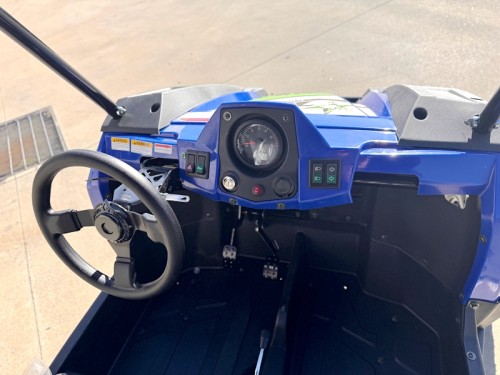

• Digital dash / LED Headlights / Indicators / Horn
• Adjustable speed governor behind the pedal
• Bigger 10-inch knobby wheel
• Double A arm independent suspension
• Ball joint independent rear suspension
• 2WD-rear chain driving

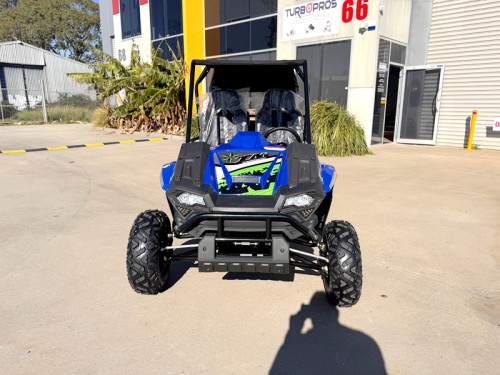

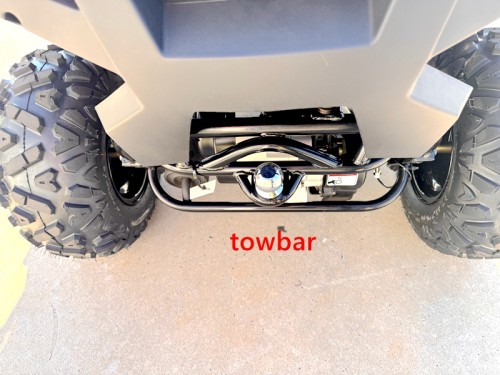

• Front bull bar / Luggage rack / Tow bar/adjustable rear view mirrors
• Front steel bumper
• Sunshade top canopy
• Adjustable side rearview mirrors

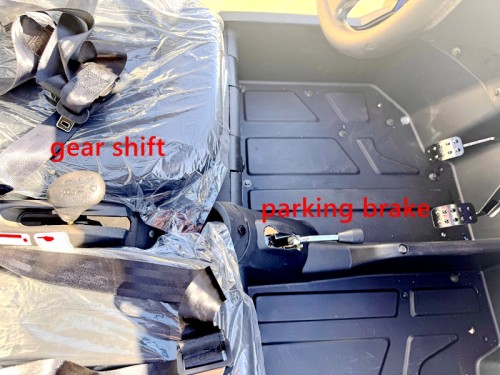

• Parking brake
• Ergonomic steering wheel

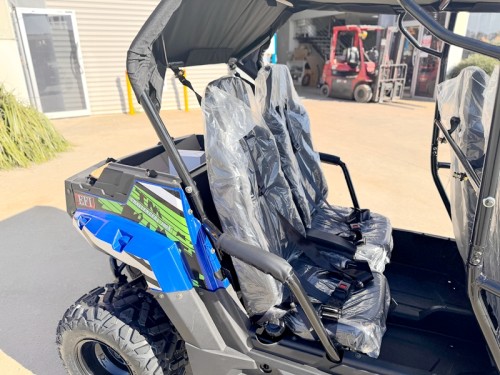

• Individual sport seats
• Large rear utility cab

Buggy dimensions: 3300x1260x1650mm LxWxH

Packing size: 3000x1330x880mm LxWxH

Net/gross weight: 400kgs/450kgs

Max loading: 400kgs

Front wheel centre distance: 1080mm

Rear wheel centre distance: 985mm

Minimum ground clearance: 160mm

Max speed: 60km/h

Engine model: 161QMK-A  4-stroke, single cylinder

Displacement: 200cc

Bore x Stroke: 61mm x 57.8mm

Compression ratio:   8.8:1

Fuel supply method: EFI

Power: 8kw/7500RPM 14hp

Torque:15N.M/5000RPM

Ignition mode: battery ignition

Start mode: electric start

Lubrication mode: splash

Spark plug model: C7HSA

crankcase lubrication oil model: SAE 10W/40

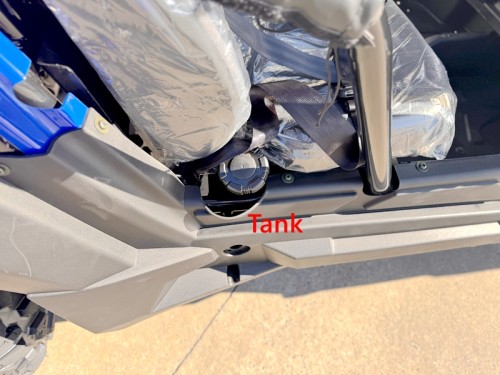

Fuel tank capacity: 8L

Transmission mode: CVT

Gearbox: Built-in reverse

Clutch: Auto

Battery model: YTX12-BS 12V10AH

Fuse:15A

Front and rear wheels: 22x7-10, 22x10-10

Tyre pressure:15psi

Front suspension method: double A-arm independent suspension

Rear suspension: Rear axle with double A and double shock absorbers

Driven mode: rear wheel chain driven

Climbing ability: 15-20 degrees

Max Carry cab loading: 100kgs

Shipping Cost

Please provide your postcode and suburb so we can quote an accurate shipping rate as soon as possible. Most items will be delivered to your local depot. Home delivery is available at an additional cost.

Assembly

This buggy is shipped in a crate and requires assembly. You will need to install the wheels, mudguards, seats, top roll cage, and other components. The vehicle arrives 95% assembled in a carton.

The customer is responsible for:

• Uncrating the vehicle

• Performing the initial setup

• Conducting the engine oil service

• Checking and adjusting all systems, including the throttle and brakes

• Checking and tightening all bolts and nuts

• Performing a break-in after the first hour of operation

All of the above must be carried out by the customer’s mechanic at the customer’s own expense.

Assembly service is available for local pickup customers at an additional cost of $300.

Warranty

The manufacturer's warranty covers parts only. It does not cover labor or any repair costs under any circumstances. Any damaged or missing items upon delivery will be replaced. The warranty does not cover any damage caused during operation or due to improper assembly.

Contact Us

For more details or to inquire about discounts, please email: info@mjmotor.com.au
For questions, call us at: 03-9706 6761
