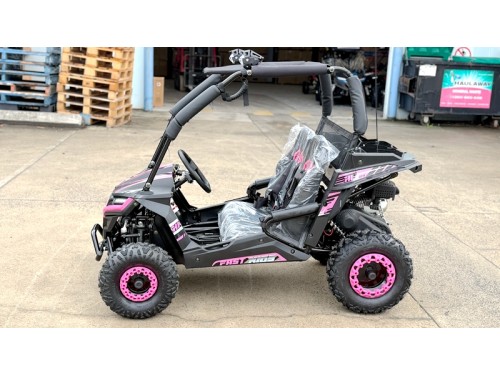

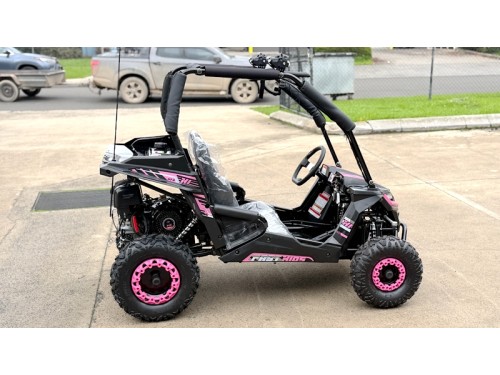

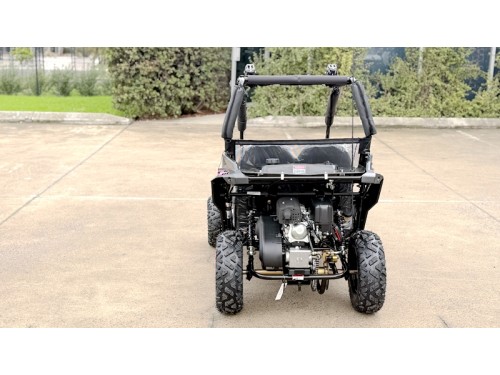

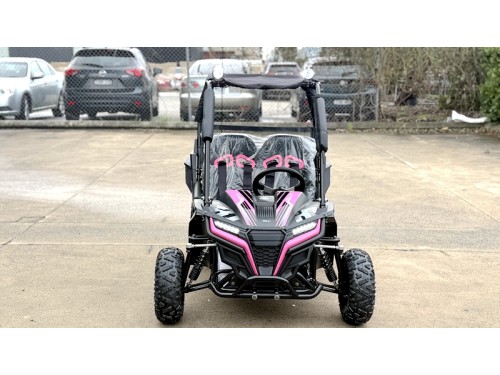

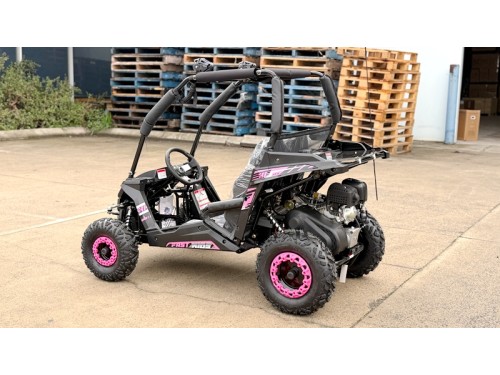

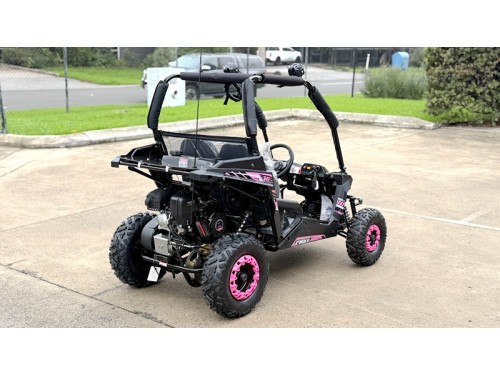

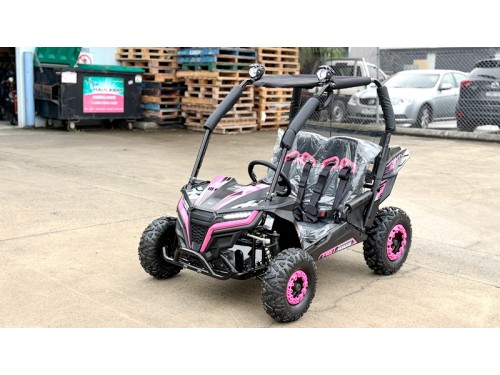

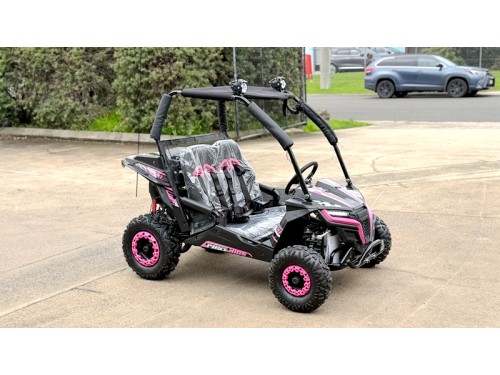

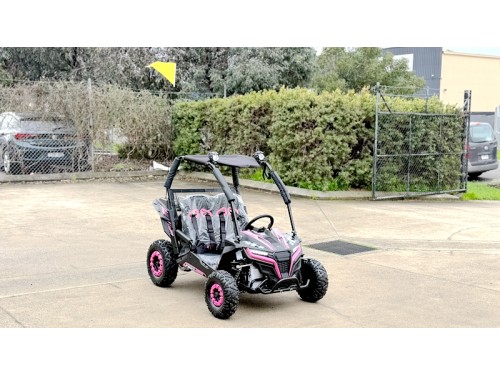

The FORZA 1 / K1 163cc Buggy is a fun and practical off-road buggy designed for young riders. Powered by a reliable 163cc 4-stroke OHV engine, it features fully automatic CVT transmission, reverse gear, adjustable seating and a built-in speed governor for easier speed control.
Available in Blue, Red and Green.
KEY FEATURES
- 163cc 4-stroke OHV engine
- 5.5HP engine
- Fully automatic CVT transmission

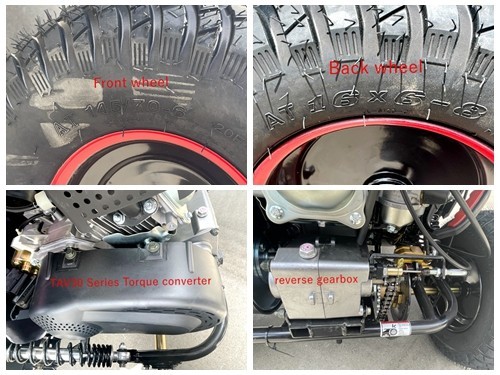

- TAV30 Series torque converter
- External reverse gearbox
- Electric key start + pull start

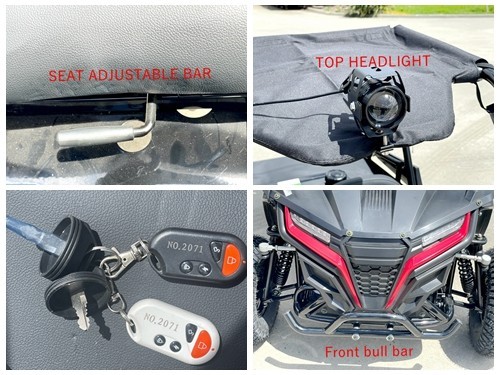

- Adjustable seat

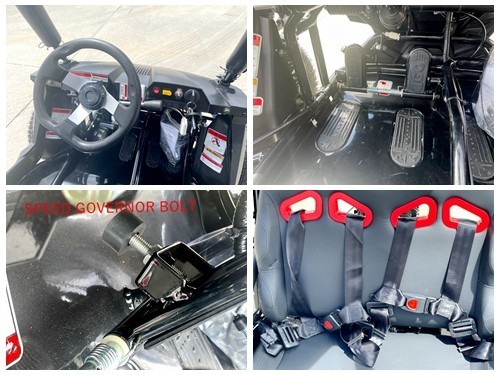

- Adjustable speed governor behind the pedal

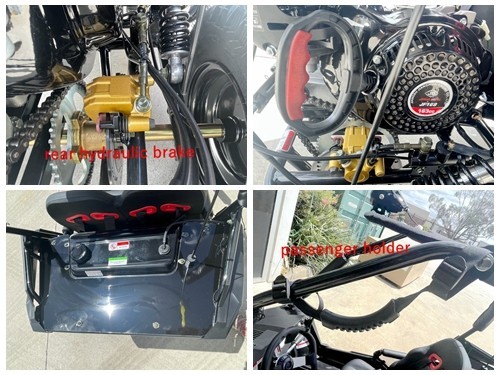

- Hydraulic rear disc brake
- 3-point safety seat belts
- Front bull bar
- LED headlights + top-mounted headlight
- Immobiliser system
- Remote start
- Emergency engine kill switch
- Alarm
- Horn
- Front independent double A-arm suspension
- Rear spring-over-shock suspension
- Knobby off-road tyres
- Rear-wheel drive
- Suitable for recreational off-road use
ENGINE & PERFORMANCE
| Specification |
Details |
| Engine Model |
JF168 |
| Engine Type |
4-Stroke, Air-Cooled, Single Cylinder |
| Displacement |
163cc |
| Bore × Stroke |
68mm × 45mm |
| Maximum Power |
3.2kW / 3600 RPM |
| Horsepower |
5.5HP |
| Carburettor |
JF168N.9.1C |
| Ignition |
Transistor Contactless Ignition |
| Starting System |
Electric & Pull Start |
| Transmission |
CVT Automatic |
| Reverse |
External Reverse Gearbox |
| Clutch |
Automatic |
| Drive |
Rear-Wheel Drive |
| Maximum Speed |
Up to 45 km/h* |
| Climbing Ability |
Up to 12°* |
*Actual speed and performance may vary depending on rider weight, terrain and operating conditions.
CHASSIS & DIMENSIONS

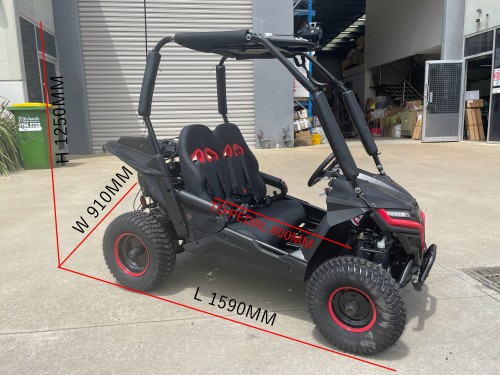

- Overall Dimensions: 1590 × 910 × 1250mm (L × W × H)
- Wheelbase: 1110mm
- Minimum Ground Clearance: 90mm
- Maximum Load: 100kg
- Net Weight: 120kg
- Gross Weight: 160kg
Adjustable Seating
The seat position can be adjusted to provide a more comfortable riding position.
- Pedal-to-seat-back distance: approximately 800mm
- Adjustable range: approximately 100mm
WHEELS & SUSPENSION
Front Tyres: 145/70-6
Rear Tyres: 16 × 6-8
Recommended Tyre Pressure: 15 PSI
Front Suspension: Double A-arm independent suspension
Rear Suspension: Spring-over-shock suspension with approximately 2" travel
FUEL & ENGINE OIL
- Fuel Tank Capacity: 3.6L
- Engine Oil Capacity: 0.6L
- Recommended Engine Oil: SAE 10W-40
- Lubrication: Splash Lubrication
- Fuel Supply: Gravity Feed
- Spark Plug: F7TC / F7RTC
- Spark Plug Gap: 0.6–0.7mm
- Battery: YTX12-BS, 12V 10Ah
SAFETY FEATURES
The FORZA 1 / K1 includes several features designed to provide additional control and safety during operation:
- 3-point seat belts
- Hydraulic rear disc brake
- Adjustable speed governor
- Emergency engine kill switch
- Immobiliser
- Alarm system
- Front bull bar
- LED headlights
- Horn
Adult supervision is recommended. Always wear appropriate safety equipment, including a properly fitted helmet.
Color: Pink
SHIPPING
Please send us your postcode and suburb and we will provide a shipping quote as soon as possible.
- Most orders are delivered to the nearest local freight depot.
- Home delivery is available to selected areas and may incur an additional freight charge.
- Shipping costs depend on the destination and delivery requirements.
Please contact us before purchasing if you would like us to check the freight cost.
ASSEMBLY REQUIRED
The buggy is supplied in a crate and requires assembly before use.
Basic assembly includes installation of:
- Wheels
- Mudguards
- Seat
- Top roll cage
- Other components as required
Assembly instructions are provided.
IMPORTANT
This is an off-road recreational buggy and is not designed for use on public roads unless specifically approved and legally permitted.
Always check local laws and regulations before operating the vehicle.
Please inspect and correctly assemble all components before riding.
QUESTIONS?
If you have any questions, please contact us.
Phone: 03 9706 6761
MJ MOTOR AUSTRALIA PTY LTD
